Night Arrow Max 650

NARMAX635

New product

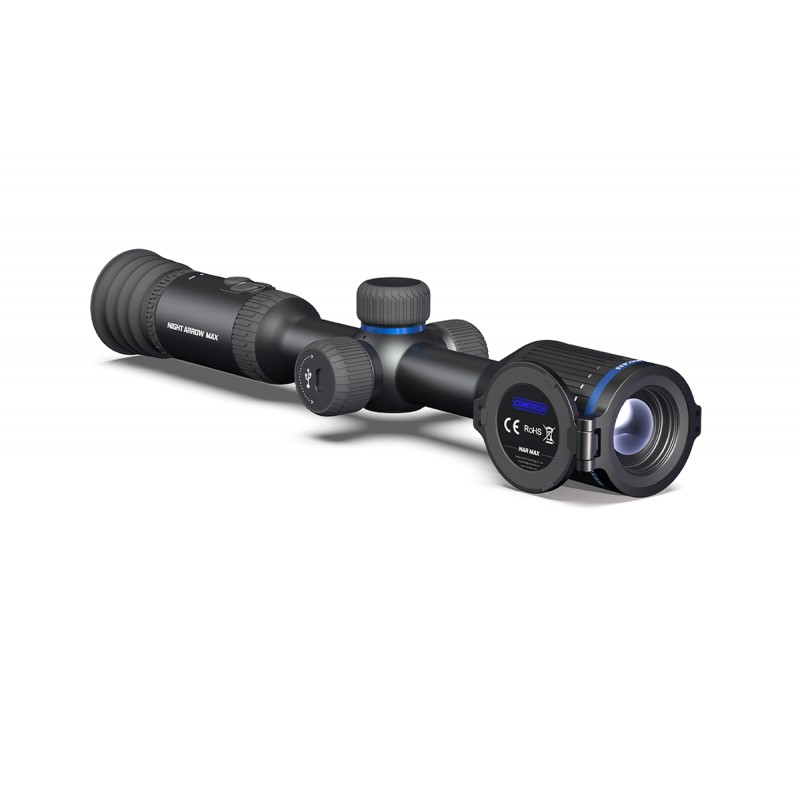

Conotech Night Arrow Max 635 Thermal Rifle scope

More details

3 199,00 € tax incl.

Add to wishlist

More info

NIGHT ARROW MAX - Thermal RifleScope

Ultra-Sensitive Thermal Sensor

Featuring a high-performance 640×512 thermal detector with NETD <15mK, the NAR MAX offers outstanding image clarity and thermal sensitivity. This advanced detection capability ensures enhanced contrast, greater detail recognition, and improved situational awareness—even in the most demanding environments.

NAR MAX is equipped with CONOTECH's advanced LIIR Pro, a more compact and refined laser rangefinder technology that ensures highly precise alignment between the laser and infrared axes. With a 10% increase in infrared energy output compared to LIIR, it delivers enhanced accuracy, reliability, and overall performance.

2560×2560 OLED Display

NAR MAX thermal imaging scope features an upgraded OLED display with a 2560x2560 resolution, providing a more immersive viewing experience. The larger screen reduces eye fatigue during extended use and enhances shooting accuracy by allowing clearer observation of impact points and finer details.

Easier operation

NAR MAX has a unique wheel design. The rotating wheel operates more precisely and effectively. The device can be powered on, set to standby, or turned off by rotating the wheel.

Quick-lock Battery

Stay powered through long hunts with a removable external battery and quick-lock mounting system, ensuring efficient, tool-free replacement in the field without interrupting your experience.

EYEC-II: Exclusive Algorithm

Introducing EYEC-II, CONO’s exclusive image algorithm designed to take infrared imaging to the next level. With advanced processing technology, EYEC-II delivers sharper clarity, enhanced contrast, and greater detail recognition—ensuring every observation is more precise and reliable. Experience the difference of innovation tailored for professionals.

Full-wrap Eyepiece For Eye Protection

The full-wrap eyepiece is ergonomically designed to shield your eyes from light leakage and provide added protection, ensuring comfort during extended use and better concealment in dark environments.

Protective Magnetic Lens Cap

Night Arrow Max Specification
Model NAR MAX 635 NAR MAX 650 NAR MAX 650LIIR
Main Characteristics
Type Uncooled Vox
Resolution 640×512
Frame rate 50Hz
Pixel 12μm
Spectral range 8-14μm
NETD 15mk
Optical Characteristics
Objective lens 35mm 50mm 50mm
Magnification 2.6× 3.7× 3.7×
FOV(HxV), m@100m 21.9×10.1 15.4×12.3 15.4×12.3
Functions
Zoom 1×/2×/4×/8×
Palettes Multiple
Firmware update via APP Yes
Display
Type OLED
Resolution 2560×2560
External video WIFI
Power Supply
Battery 1×18650 ( Internal battery) + 1×18650 (External battery)
External power supply 5V USB-C
Operating time (at t=22°C) 10h
Physical Characteristics
Weight 900g 950g 990g
Dimension 75×99×365mm 75×99×371mm 75×99×371mm
Environmental Compatibility
Ingress protection rating IP67
Operating temperature -20°C~+50°C
Storage temperature -40°C~+70°C
Shock resistance 7000J
Laser Rangefinder
Safety class for laser equipment
according to IEC 60825-1:2014
/ 1
Measuring range / 5-1200m
Measurement accuracy / ± 1m
