Conotech Pharos 3

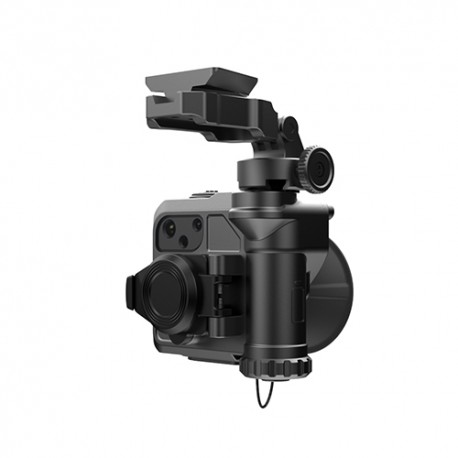

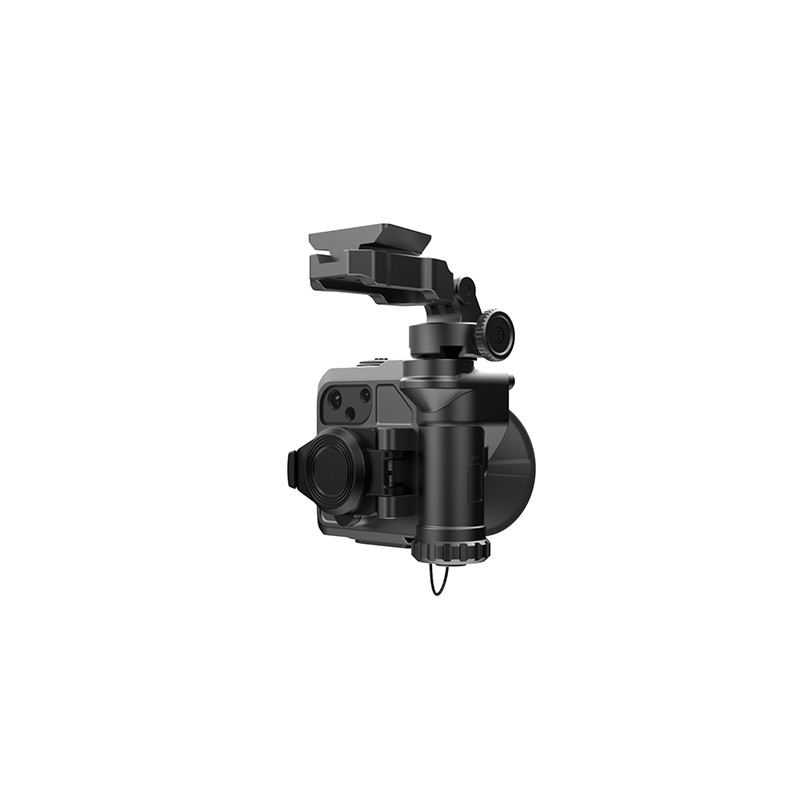

Conotech Pharos 3 thermal camera

Combined a sensor resolution of 384 × 288 pixels, it has a particularly high thermal resolution of 40 mK and therefore offers high-contrast images even in adverse environmental conditions. Multifunctional and flexible in use. Wearable or helmet-mounted device for easy detection and identification. Additionally, due to the nature of thermal imaging, it allows you to see through smoke, fog, and light foliage.

– Super slim and small
– Easy installation on the helmet.
– 50HZ refresh rate
– 12um PFGA
– Shutterless technology
– Military banner
– IP68 protection level

PRODUCT DETAIL
Resolution: 320×240
Pixel size: 12μm
Objective lens: 7.5mm/F1.0
Screen type: OLED
Screen resolution: 1024 × 768
Magnification: 1X
Optical magnification: 2X/4X
Field of view: 29° x 22°
Reconnaissance range: 177m
Operation time: not less than 3 hours
Battery type: 1XCR123
Function: gain adjustment, polarity conversion, video output, external power supply
Indicator light: LED light, infrared supplementary light, SOS light
Operating temperature: —40℃ ~ +60℃
Storage temperature: —50℃~+70℃
Protection grade: IP67
Dimension: 70x62x42mm
Weight without batteries: 140g (aluminum alloy) /110g (magnesium alloy)
